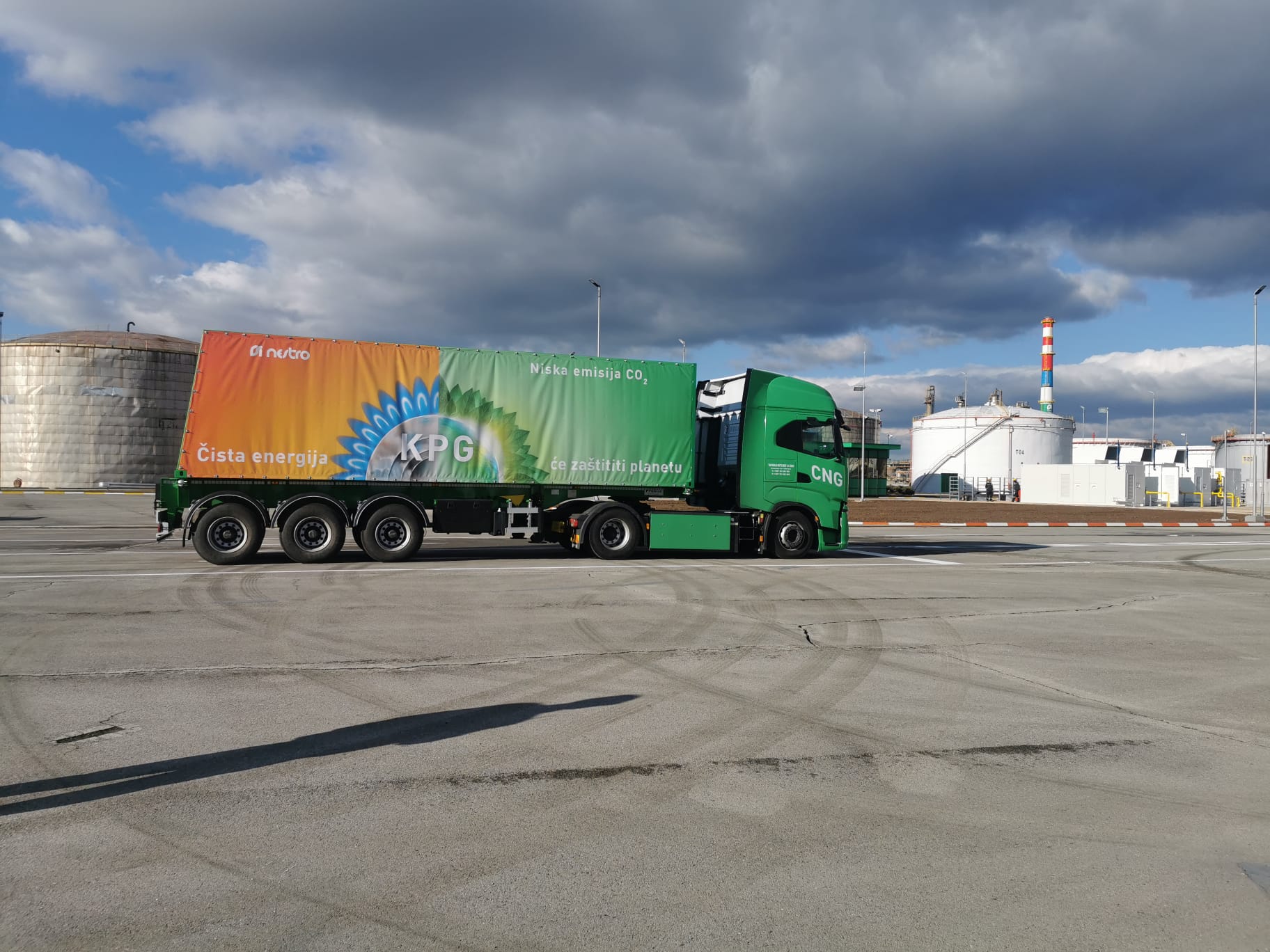

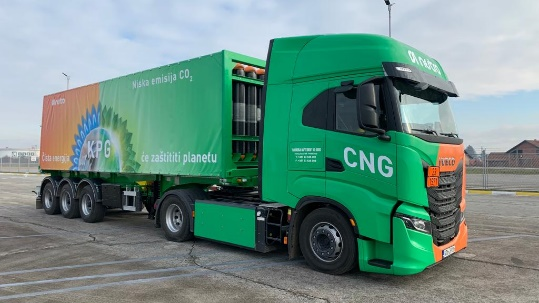

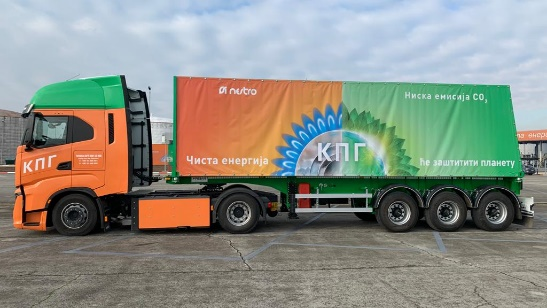

Following the order and technical request of Rafinerija Nafte Brod a.d., the delivery of multi-element gas containers (first 2 units) with semi-trailers was completed at the beginning of December, 2021. and transported from the production facilities of Macel plin d.o.o. on the final location in Rafinerija nafte brod a.d.
Investor: Rafinerija nafte brod a.d.
Subject of the Contract: MEGC with semi-trailer capacity 5400nm3, 250 bar
Planned commissioning: December 2021.
| TECHNICAL SPECIFICATION | 30 FT MEGC CONTAINER |
| TYPE OF CYLINDERS | II TYPE, DOUBLE NECK |
| TOTAL CAPACITY (NM3) | 5400 |
| PRESSURE OPERATION (BAR) | 250 |
| NUMBER OF CYLINDERS (PCS) | 123 |
| WATER CAPACITY OF 1 CYLINDER (l) | 150 |
| WEIGHT OF EMPTY CONTAINER (KG)+SEMI-TRAILER | 27.000 |
| CYLINDER POSITION | VERTICAL |
